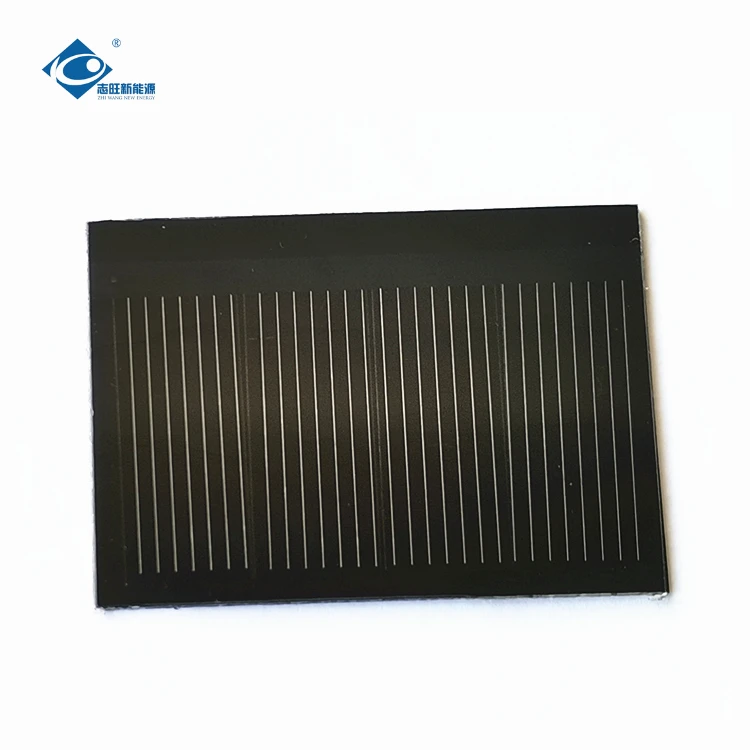

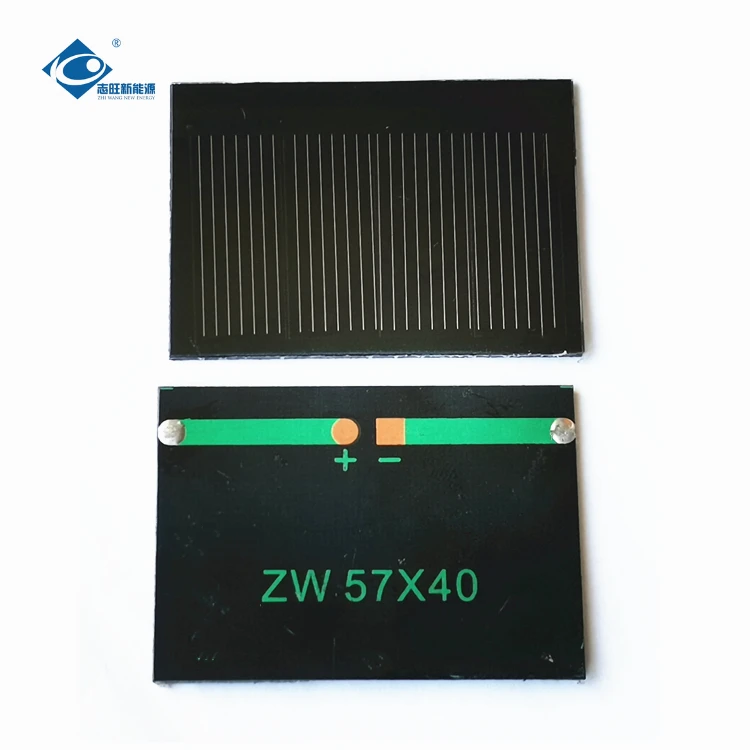

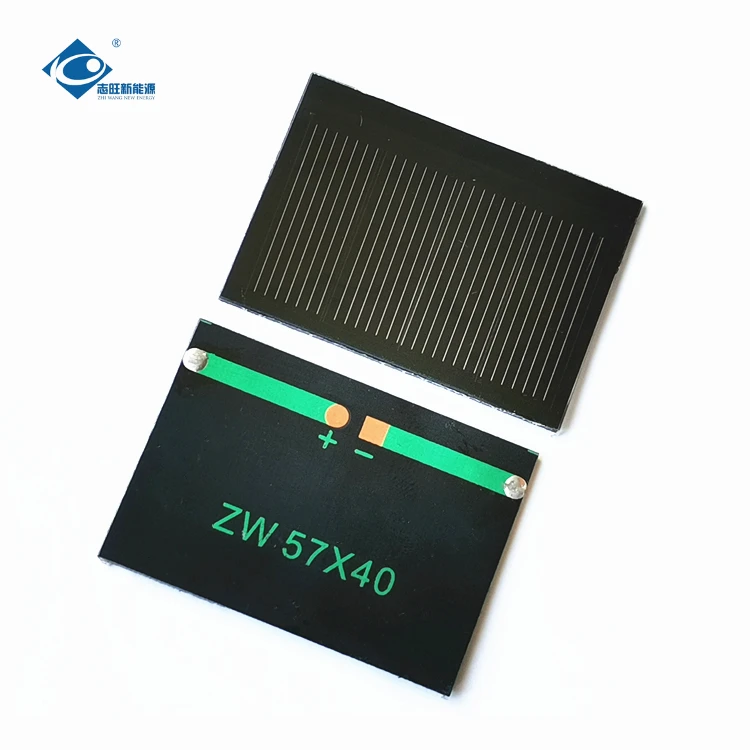

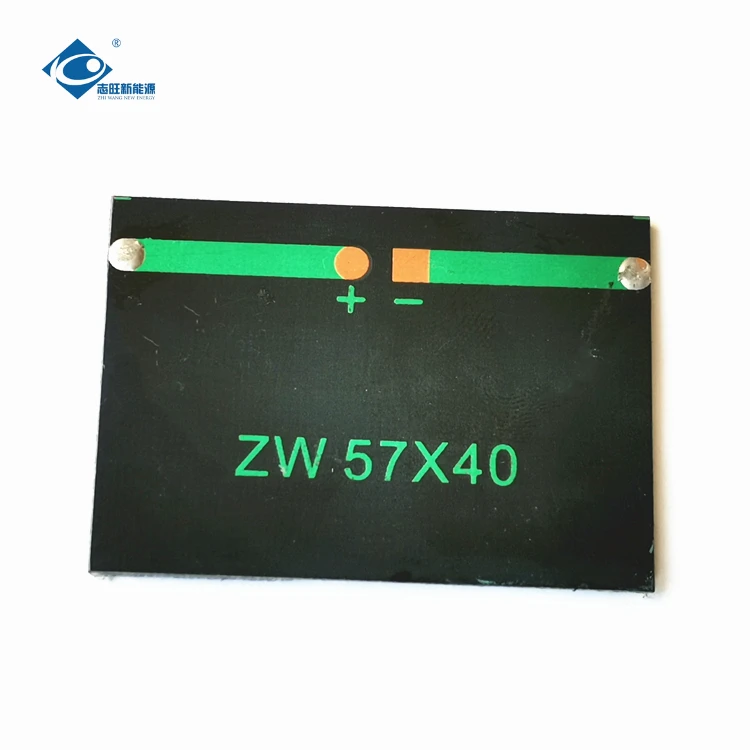

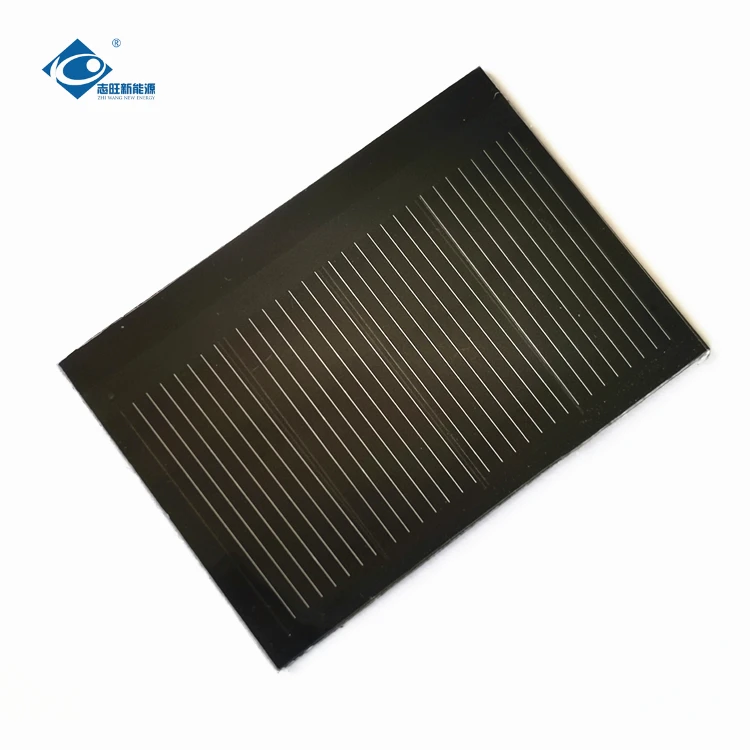

ZW-5740 Mono Crystalline Solar Panel 0.3W Semi-Flexible PET Solar Panel Charger 4Volt
| Model: | ZW-5740 |
| Brand: | Zhiwang |
| Size: | 57*40*2.2mm |
| Battery: | 8 |
| Peak power: | 0.3W |
| Size of Cell | 7*39mm |
| Max voltage: | 4V |
| Max current: | 0.6A |
| Open voltage: | 4.4V |
| Short current: | 0.9A |
| Weight: | 17G |
| Keyword: | Solar Photo-voltaic Panel |
| Raw Material: | Poly Mono Crystalline Silicon or Mono Crystalline Silicon Epoxy Adhesive or PET Printed Circuit Board (PCB) EVA Glass Fiber Material Base Plate Customizable |
| Product | Certification: CE EMC ROHS |
| Operating temperature: | -40°C to +85°C |
| Power Output | 3 year:80% of its nominal power rating |
| Maximum system voltage | 5VDC |
| Maximum System Voltage | 10V(UL)/12V(IEC) DC |
| Maximum Rated Current Series | 2A |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
The high efficiency solar PV module adopts the worlds highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
Features
1. High cell efficiency with quality silicon materials for long term output stability;
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and low irradiance;
7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to 19.5%.
11. Mono-crystalline or poly-crystalline silicon solar cells are for options.
12. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
13. Lifespan up to 25 years.
14. Rigorous quality control meeting the highest international standards;
15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
16. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
17. Resin/Epoxy PCB solar panel,effectively increase waterproof,dust proof,wear resistance,elastic,heat resistance.
18. ETFE and PET PCB surface available for solar panel photo-voltaic.
19. Super light to carry easy anytime, anywhere.
20. High efficiency poly crystalline cells in solar panel photo voltaic.
21. Environment friendly AB glue used in solar panel photo voltaic.
22. High quality epoxy resin.
23. Smooth surface and amazing appearance
24. Widely used for educational kits,experiment kits,science kits,toys kits,small power supply etc.
25. OEM/ODM/Custom service any size,voltage and color.
TEMPERATURE RATINGS
* Mono-crystalline or poly-crystalline silicon solar cells are for options.
* Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
* Lifespan up to 25 years.
* Rigorous quality control meeting the highest international standards;
Module characteristic:
1. High conversion rate and efficient output Poly crystalline Silicon.
2. Mini Solar Panels with excellent weak light effect to charge solar kits system.
3. High quality and high transmittance of toughened glass special for mini solar panels.
4. The unique process makes the components look strong and anti-snow, and easy to install.
5. Special techniques to avoid Mini Solar Panels the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
6.Mini Solar Panels suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
7. Quality solar cells with high solar energy conversion up to 19.5%.
8. Mono-crystalline or poly-crystalline silicon solar cells are for options.
9. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
10. Lifespan up to 25 years for solar panel photo-voltaic.
11.25-year power output warranty ;
12. Rigorous quality control meeting the highest international standards;
13.ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
14.Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
Q. Are you a manufacturer or a trading company?
A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, with OEM& ODM& Customization available.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our ZW-5740 Mono Crystalline Solar Panel 0.3W Flexible PET Solar Panel Charger 4Volt sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your ZW-5740 Mono Crystalline Solar Panel 0.3W Flexible PET Solar Panel Charger 4Volt order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your ZW-5740 Mono Crystalline Solar Panel 0.3W Flexible PET Solar Panel Charger 4Volt samples or technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery ZW-5740 Mono Crystalline Solar Panel 0.3W Flexible PET Solar Panel Charger 4Volt.
Q.How many years for warranty?
A: Our warranty is 3 -5 years for our ZW-5740 Mono Crystalline Solar Panel 0.3W Flexible PET Solar Panel Charger 4Volt.
